Sensitivity range of axon diameter index
When estimating axon diameter indices from MRI data, the sensitivity range of such estimates is closely associated with experimental factors, such as gradient strength and diffusion times, and tissue properties such as the intrinsic diffusivity. Therefore, evaluation of experimental settings is important for understanding the validity of the axon diameter index. Following the sensitivity criterion for the PA signal introduced by previous studies (Andersson et al., 2022; Nilsson et al., 2017), we can conveniently calculate the sensitivity range of axon diameter index estimates obtained from Microstructure.jl.
For single high b-value
The sensitivity criterion concerns whether the normalized signal along a single gradient can be differentiated from the noise floor and the maximum signal. The smallest measurable signal attenuation $\overline{σ}$ relates to the SNR level of the signal as follows:
\[\overline{σ} = \frac{z_α}{SNR\sqrt{n}},\]
where $n$ is the number of measurements and $z_α$ is the z-threshold for the significance level $α$ ($z_α = 1.64$ when $α = 0.05$). The PA signal from a Cylinder compartment is upper bounded by a Cylinder with zero diameter, which is equal to the Stick model signal. A Cylinder therefore has a measurable diameter if its PA signal falls within the range of $[\overline{σ}, S_{stick} - \overline{σ}]$. Given a single b-value, the lower and upper bounds of axon diameter are thus the minimal diameter that gives $S_{cylinder}$ smaller than $S_{stick} - \overline{σ}$ and maximal diameter that gives $S_{cylinder}$ above $\overline{σ}$.
We start by using the packages we need:
# We use Microstructure.jl for sensitivity analysis and other libraries for visualization
using Microstructure
using Plots
using LaTeXStrings
using Plots.PlotMeasuresBased on the sensitivity criterion, we can define the following function to calculate the sensitivity range for a given high b-value measurement:
"""
Calculate the sensitivity range for axon diameter index with PA signal from a single b-value.
Inputs:
SNR: SNR level of data
n: the number of unique gradient directions for the b-value measurements
bval: b-value
tdelta: gradient seperation time
tsmalldel: gradient duration time
d0: the intrinsic diffusivity within intra-axonal compartment
Outputs:
lower bound (m), upper bound (m), G (T/m)
"""
function axon_da_sensitivity(SNR, n, bval, tdelta, tsmalldel, d0)
za = 1.64
sigma = za ./ SNR ./ sqrt.(n)
# make a Protocol type object from the single-b measurement
prot = Protocol([bval], zeros(length(bval)), [tdelta], [tsmalldel])
# generate signals from a Stick compartment and the protocol
Sstick = compartment_signals(Stick(; dpara=d0), prot)
# maximal signal
upperb = Sstick[1] - sigma
# the range of diameter indices for searching the lower and upper bounds
range_lb = 0.5e-6:0.01e-6:4.0e-6
range_ub = 5.0e-6:0.01e-6:20.0e-6
cyl = Cylinder(; dpara=d0, d0=d0)
for ia in eachindex(range_lb)
cyl.da = range_lb[ia]
signal = compartment_signals(cyl, prot)
signal[1] < upperb && break
end
da_min = cyl.da
for ia in eachindex(range_ub)
cyl.da = range_ub[ia]
signal = compartment_signals(cyl, prot)
signal[1] < sigma && break
end
da_max = cyl.da
return da_min, da_max, prot.gvec[1]
endAn example call of the function that returns (1.76e-6, 5.63e-6, 0.6576631887436215), meaning sensitivity range of [1.76, 5.63] 𝜇m at G ≈ 658 mT/m (The package uses standard unit for computation):
axon_da_sensitivity(37, 32, 43.0*1e9, 15.192e-3, 11.0e-3, 0.6*1e-9)To visualize the sensitivity ranges for different protocols, we define a function to plot the sensitivity profile from several b-values (G) with same diffusion times:
"""
Visulize the sensitivity profile of axon diameter given several b-values
call the axon_da_sensitivity function and plot figures
"""
function sensitivity_plot(SNR, d0, bval_mea, tdelta, tsmalldel, n = 32)
da_min_mea = zeros(length(bval_mea))
da_max_mea = zeros(length(bval_mea))
g_mea = zeros(length(bval_mea))
# calculate sensitivity range for given b-values in the protocol
for ib in eachindex(bval_mea)
da_min_mea[ib], da_max_mea[ib], g_mea[ib] = axon_da_sensitivity(
SNR, n, bval_mea[ib], tdelta, tsmalldel, d0
)
end
# continous plots
bval = (000.0 * 1.0e6):(1000.0 * 1.0e6):max(bval_mea...)
da_min = zeros(length(bval))
da_max = zeros(length(bval))
G = zeros(length(bval))
for ib in eachindex(bval)
da_min[ib], da_max[ib], G[ib] = axon_da_sensitivity(
SNR, n, bval[ib], tdelta, tsmalldel, d0
)
end
xticks = bval_mea*1.0e-9
xlabel = L"b: ms/{{\mu}m}^2"
yticks = [0.0, 2.0, 5.0, 8.0, 11.0, 15.0]
ylabel = L"diameter: {\mu}m"
label = ["lower bound" "upper bound"]
p = plot(
bval*1.0e-9,
[da_min, da_max]*1.0e6;
xticks=xticks,
xlabel=xlabel,
yticks=yticks,
ylabel=ylabel,
label=label,
legend=:topright,
lw=2,
ylims=(0, 18),
)
scatter!(bval_mea*1.0e-9, [da_min_mea, da_max_mea]*1.0e6; label=false)
annotate!(
bval_mea*1.0e-9,
da_min_mea*1.0e6 .+ 1.5,
text.(round.(da_min_mea*1.0e6; digits=2), :top, :green, 8),
)
annotate!(
bval_mea[2:end]*1.0e-9,
da_max_mea[2:end]*1.0e6 .- 1.0,
text.(round.(da_max_mea[2:end]*1.0e6; digits=2), :right, :purple, 8),
)
vline!([xticks[1], xticks[end]]; line=(:dash), labels=false)
annotate!(
xticks[1]-2.5, 1, text("G="*string(round(Int, g_mea[1]*1000))*"mT/m", :top, 7, :red)
)
annotate!(
xticks[end]-4,
1,
text("G="*string(round(Int, g_mea[end]*1000))*"mT/m", :top, 7, :red),
)
return p
endThe functions for visualizing sensitivity profiles are included as utility functions outside the package. You can use these functions by including the utility script in the package folder:
using Microstructure
srcpath = dirname(pathof(Microstructure))
include(joinpath(srcpath, "../utils/utils.jl"))Experiments
We calculate the sensitivity ranges of axon diameter estimation at different high b-values feasible on a 4.7 T preclinical scanner with maximum gradient strength Gmax = 660 mT/m. We investigate the effects of diffusion time and b-value to sensitivity ranges by using different diffusion times that reach the Gmax with different b-values. We assume that the number of gradient directions is 32 and the ex vivo intrinsic diffusivity is 0.6 $𝜇m^2/ms$. We consider SNR levels of 100, 50 and 30.

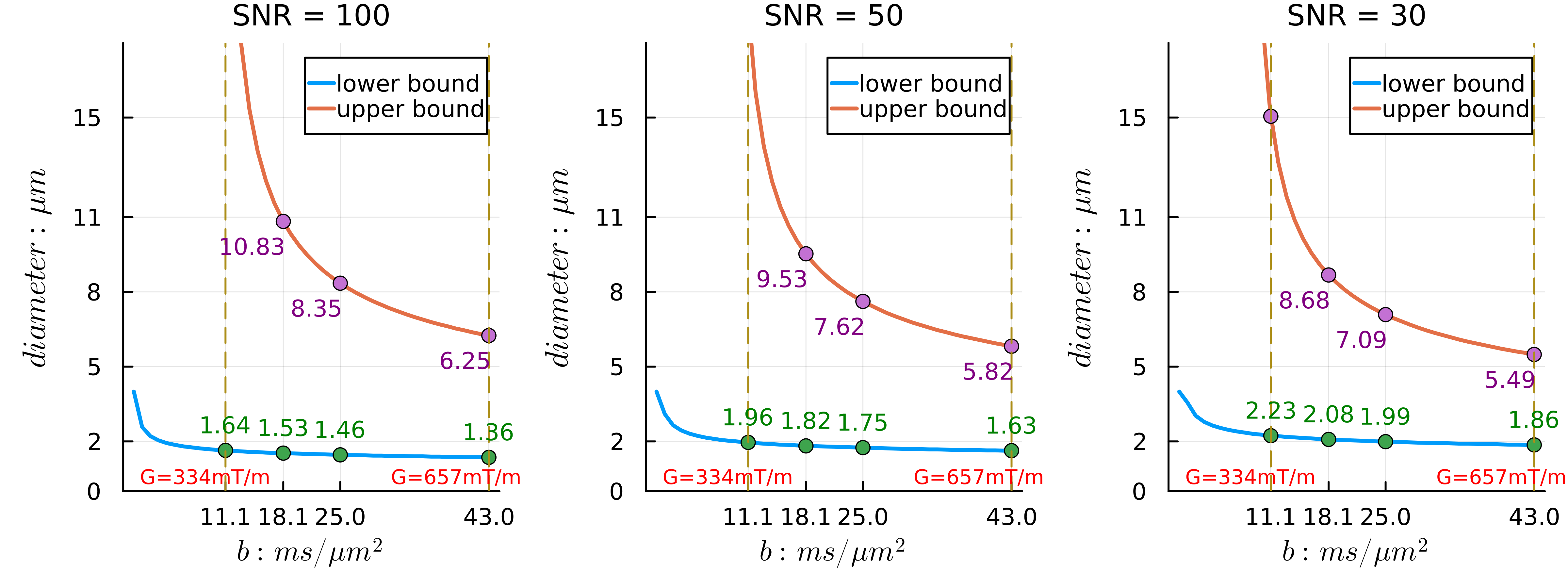

Example for the median diffusion time:
# directory for saving figures
figdir = "/Users/tgong/Work/Projects/Microstructure.jl/demos/Toolbox/figures"
dpi = 600
# %% evaluating protocol 2
bval_mea = [11100, 18100, 25000, 43000] .* 1.0e6
tdelta = 15.2*1e-3
tsmalldel = 11.0 .* 1e-3
p1 = sensitivity_plot(100.0, 0.6e-9, bval_mea, tdelta, tsmalldel)
p2 = sensitivity_plot(50.0, 0.6e-9, bval_mea, tdelta, tsmalldel)
p3 = sensitivity_plot(30.0, 0.6e-9, bval_mea, tdelta, tsmalldel)
titles = ["SNR = 100" "SNR = 50" "SNR = 30"]
plot(
p1,
p2,
p3;
layout=(1, 3),
titles=titles,
titlefont=font(10),
xlabel=L"b: ms/{{\mu}m}^2",
#xlabel=L"b: ms/{{\mu}m}^2; {\delta}/{\Delta}=11/15.2ms",
left_margin=5mm,
bottom_margin=5mm,
xguidefontsize=10,
size=(800, 300),
dpi=dpi,
)
savefig(figdir * "/1_sensitivity_dt15")
Results
For the same diffusion time, the sensitivity range shifts towards smaller axons when the gradient strength G and thus b-value increases, as seen in Figure 3(A-C) in our preprint. Higher gradient strengths yield sensitivity to smaller axons, which are most abundant in tissue. However, they also reduce the sensitivity to very large axons, e.g. axons with diameter > 7.5 𝜇m for G = 660 mT/m. For the same gradient strength G, shorter diffusion time and therefore lower b-value widens the sensitivity range on both sides. For example, see G≈ 660 mT/m, b = 25, 43 and 64 $ms/𝜇m^2$ in Figure 3(A-C). For the same b-value, shorter diffusion time and thus higher G lowers the lower bound of axon diameters that can be estimated accurately but also reduces sensitivity to larger axons. This analysis suggests that using higher gradient strength and shorter diffusion time to achieve lower b-values is preferable, as it achieves a wider sensitivity range that covers most axon diameters expected in real tissue.
