SMT
For a neural network estimator, the prior distribution of tissue parameters used for training the model will affect the posterior distributions of parameter estimates. Ideally an uninformative prior such as those used in the MCMC sampler will ensure that the estimates are less biased by prior knowledge and thus truly reflect biological properties. However, due to practical difficulties in parameter estimation, e.g., with limited data and low SNR, previous studies have used strategies such as fixing certain parameters and using narrower priors to increase the robustness of estimates. The Microstructure.jl package is designed to investigate these strategies flexibly, as the parameters to estimate in a model and the prior ranges and prior distributions are input arguments for training MLP models. It generates fitting evaluations for a fitting strategy given the protocol and SNR level in the data.
This tutorial uses the SMT model (Kaden et al., 2016) for demonstration.
Datasets
We used the minimally preprocessed datasets from the WashU/UMinn young adult Human Connectome Project (HCP) (Glasser et al., 2013; Van Essen et al., 2012) to demonstrate the fitting of a Stick-Zeppelin model appropriate for WM with the SMT. The HCP data were acquired at a 1.25 mm isotropic resolution with diffusion weightings of b=1000, 2000, and 3000 $s/mm^2$, 90 directions per shell and 18 $b = 0 s/mm^2$ images interspersed uniformly between the DWIs, resulting in a total of 288 measurements. We used datasets from 6 subjects for evaluating the variation of estimates.
Experiments
The SMT model with single TE data is characterized by the intra-axonal signal fraction $f_{ia}$, intra-axonal parallel diffusivity $D_∥^{ia}$, extra-cellular parallel diffusivity $D_∥^{ec}$ and extra-cellular perpendicular diffusivity $D_⊥^{ec}$. This two-compartment SMT model (Kaden et al., 2016) originally assumed $D_∥^{ec}=D_∥^{ia}=D_∥$ and linked $D_⊥^{ec}$ through a model of tortuosity as $D_⊥^{ec} = (1- f_{ia}) D_∥^{ec}$, thus reduced the model parameters to $f_{ia}$ and $D_∥$. Here, we removed the tortuosity assumption and estimated $f_{ia}$, $D_∥$ and $D_⊥^{ec}$ from all three b-shells of the HCP data; $D_⊥^{ec}$ was represented as $D_∥^{ec} = D_∥$ multiplied by a fraction between [0, 1].
We generated 30,000 training samples with tissue parameters sampled from prior ranges of [0, 1] for $f_{ia}$ and the $D_⊥^{ec} / D_∥$ fraction, and [1, 3] $𝜇m^2/ms$ for $D_∥$. We used uniform distributions for sampling the $f_{ia}$ and the $D_⊥^{ec} / D_∥$ fraction. We tested both a uniform and a more informative Gaussian distribution for the $D_∥$, with a mean value of 2 $𝜇m^2/ms$ that is appropriate for WM tissue. We generated signals for the training samples using the forward model and the HCP imaging protocol and added Gaussian noise to the signals to generate noisy measurements.
Code example

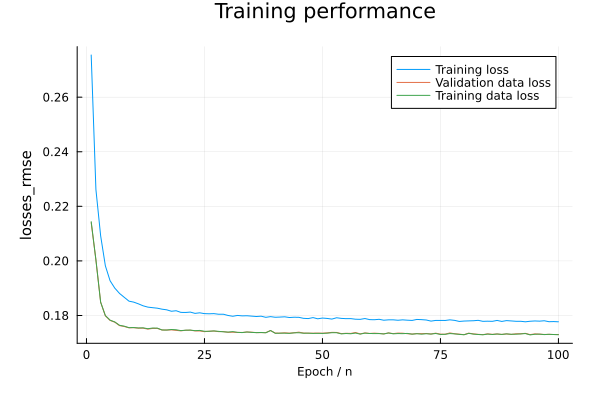

The following code trains network on synthetic data with HCP protocol. We can visualize the training log before further evaluation of parameters:
using Fibers, Microstructure
using Distributions, Random
using Plots
using Flux
# include utility functions for plotting
srcpath = dirname(pathof(Microstructure))
include(joinpath(srcpath, "../utils/utils.jl"))
# set the path to save generated figures
figdir = "/Users/tgong/Work/Projects/Microstructure.jl/demos/Toolbox/figures/"
dpi = 600 # figure resoluton
info = "gaussian" # used in file name for saving; the case of using Gaussian prior
# %% read the data acquistion protocol to generate training data
datadir = "/Users/tgong/Work/Database/HCP/905147"
protocol = Protocol(joinpath(datadir, "diravg_norm.btable"))
### Setup model and nn estimator
# t2 is set to default as 0, so single-TE model will be used
model = MTE_SMT(
axon = Stick(dpara = 2.0e-9, t2 = 0.0),
extra = Zeppelin(dpara = 2.0e-9, dperp_frac = 0.5, t2 = 0.0),
fracs = 0.5,
)
# parameters to estimate
params = ("fracs", "axon.dpara", "extra.dperp_frac")
prior_range = ((0.0, 1.0), (1.0e-9, 3.0e-9), (0.0, 1.0))
# Gaussian prior for "axon.dpara"
prior_dist = (nothing, Normal(2.0e-9, 0.3e-9), nothing)
paralinks = ("extra.dpara" => "axon.dpara")
# The level of the noise
noise_type = "Gaussian"
sigma_range = (0.002, 0.02)
sigma_dist = Normal(0.01, 0.002)
nsamples = 30000
nin = 4
nout = 3
hidden_layers = (32, 32, 32)
dropoutp = (0.1, 0.1, 0.1)
netarg = NetworkArg(
model,
protocol,
params,
prior_range,
prior_dist,
paralinks,
noise_type,
sigma_range,
sigma_dist,
nsamples,
nin,
nout,
hidden_layers,
dropoutp,
relu6,
)
trainarg = TrainingArg(batchsize = 128, lossf=losses_rmse, device = cpu)
# get mlp and training data
mlp, logs, inputs, labels = training(trainarg, netarg)
# visualize training log
p = logs_plt(logs, trainarg)
We can then get the estimates on the synthetic data and use utility function to visualize the evaluation results:
# get probabilistic estimates for the training data for evaluation
ntest = 100 # the number of test times
posteriors = test(mlp, inputs, ntest) # posterior samples
est = mean(posteriors) # mean
est_std = std(posteriors) # standard deviation
# get evaluation plot for each parameters in the model
evalplots_mean, evalplots_std, para_range = eval_plt(netarg, est, est_std, labels)
# plotting evaluation
titles = [L"f_{ia}" L"D_{\parallel}" L"D_{\perp}^{ec}"]
Plots.plot(
evalplots_mean["fracs1"],
evalplots_mean["axon.dpara"],
evalplots_mean["extra.dperp"];
layout=(1, 3),
size=(900, 200),
legend=:none,
margin=5mm,
xguidefontsize=8,
yguidefontsize=10,
titles=titles,
xlabel=[L"GT " L"GT\ [{\mu}m^2/ms]" L"GT\ [{\mu}m^2/ms]"],
ylabel=L"Estimates: Mean",
)
savefig(joinpath(figdir, "Eval_smt_3p_" * info * "_mean.pdf"))
Plots.plot(
evalplots_std["fracs1"],
evalplots_std["axon.dpara"],
evalplots_std["extra.dperp"];
layout=(1, 3),
size=(900, 200),
legend=:none,
margin=5mm,
xguidefontsize=8,
yguidefontsize=10,
titles=titles,
xlabel=[L"GT " L"GT\ [{\mu}m^2/ms]" L"GT\ [{\mu}m^2/ms]"],
ylabel=L"Std/Prior\ Range",
)
savefig(joinpath(figdir, "Eval_smt_3p_" * info * "_std.pdf"))To apply the trained mlp to real data, we can use the nn_estimate function:
# apply trained mlp to real data
subjs = ("905147", "971160", "983773", "984472", "992774", "994273")
modelname = "smt.3p." * info * "." # savename
for subj in subjs
# read data and mask
datadir = joinpath("/Users/tgong/Work/Database/HCP", subj)
dmri = mri_read(joinpath(datadir, "diravg_norm.nii.gz"))
mask = mri_read(joinpath(datadir, "nodif_brain_mask.nii"))
# apply mlp to the data and save estimated parameter maps as nifti
savedir = joinpath(datadir, "SMT")
mkpath(savedir)
nn_estimate(dmri, mask, mlp, netarg, ntest, savedir, modelname)
endResults
Evaluation on synthetic data. The Gaussian prior for D_∥, with a mean value representative of WM tissue, improved the precision and reduced the uncertainty for the diffusivity measures. The estimation accuracy of f_{ia} was not affected much by the prior distributions of diffusivities.
