SANDI
This tutorial demonstrates how to fit the soma and neurite density imaging (SANDI) (Palombo et al., 2020) using the neural network estimator.
Datasets
We used high b-value data acquired on the MGH Connectome 1.0 scanner (Tian et al., 2022) for this demo. The datasets were acquired at two diffusion times, Δ = 19 or 49 ms, diffusion-encoding gradient duration δ = 8 ms, 8 different b-values for each diffusion time (50, 350, 800, 1500, 2400, 3450, 4750, and 6000 $s/mm^2$ for Δ = 19 ms; 200, 950, 2300, 4250, 6750, 9850, 13,500, 17,800 $s/mm^2$ for Δ = 49 ms), 32 (for b < 2400 $s/mm^2$) or 64 (for b >= 2400 $s/mm^2$) diffusion encoding directions uniformly distributed on a sphere. We used a subset of the data with shorter diffusion time (b = 0, 350, 800, 1500, 2400, 3450, 4750, and 6000 $s/mm^2$ and Δ = 19 ms) for SANDI, considering that the assumption of no water exchange may be invalid at Δ = 49 in the GM (Palombo et al., 2020). We used datasets from 3 subjects with a scan and rescan to evaluate the stability of estimates.
Experiments
The free parameters in the SANDI model are the intra-soma signal fraction $f_{is}$, soma radius $R_s$, intra-neurite signal fraction $f_{in}$, intra-neurite parallel diffusivity $D_∥^{in}$ and diffusivity of the isotropic extra-cellular space $D_{ec}$.
We generated 60,000 training samples with tissue parameters uniformly sampled from prior ranges of [2, 12] 𝜇m for $R_s$, [1.5, 2.5] $𝜇m^2/ms$ for $D_∥^{in}$, and [0.5, 3.0] $𝜇m^2/ms$ for $D_{ec}$. The compartment fractions were sampled from a Dirichlet distribution with equal concentration parameters for the three compartments. We generated signals for the training samples using the forward model and added Gaussian noise to the signals to generate noisy measurements. The noise level was set based on the temporal SNR of the b=0 images and the number of measurements used for direction averaging.
# packages used in this demo
using Fibers, Microstructure
using Distributions, Random
using JLD2, DelimitedFiles
using Flux, Plots
# include utility functions for plotting
srcpath = dirname(pathof(Microstructure))
include(joinpath(srcpath, "../utils/utils.jl"))
# set the path to save generated figures
figdir = "/Users/tgong/Work/Projects/Microstructure.jl/demos/Toolbox/figures"
dpi = 600 # figure resoluton
# %%
### 1. Get imaging protocol
datadir = "/Users/tgong/Work/Database/Connectome1/sub_001/dwi_real"
protocol = Protocol(joinpath(datadir, "d1_diravg_norm.btable"))
### 2. Setup model and estimator
model = SANDI(;
soma=Sphere(; diff=3.0e-9, size=8.0e-9),
neurite=Stick(; dpara=2.0e-9),
extra=Iso(; diff=2.0e-9),
fracs=[0.4, 0.4],
)
# parameters to estimate
params = ("fracs", "soma.size", "neurite.dpara", "extra.diff")
prior_range = ((0.0, 1.0), (2.0e-6, 12.0e-6), (1.5e-9, 2.5e-9), (0.5e-9, 3.0e-9))
prior_dist = (Dirichlet([1, 1, 1]), nothing, nothing, nothing)
paralinks = ()
noise_type = "Gaussian"
sigma_range = (0.002, 0.02)
sigma_dist = Normal(0.006, 0.002)
# network settings
nsamples = 60000
nin = 8
nout = 5
hidden_layers = (48, 48, 48)
dropoutp = (0.1, 0.1, 0.1)
netarg = NetworkArg(
model,
protocol,
params,
prior_range,
prior_dist,
paralinks,
noise_type,
sigma_range,
sigma_dist,
nsamples,
nin,
nout,
hidden_layers,
dropoutp,
relu6,
)
trainarg = TrainingArg(; batchsize=128, lossf=losses_rmse, device=cpu)
# get mlp and training data
mlp, logs, inputs, labels = training(trainarg, netarg)

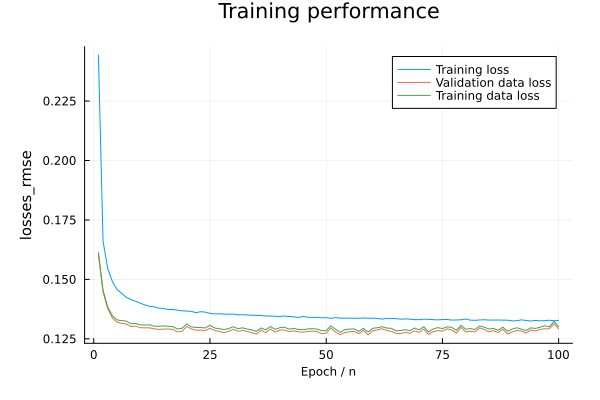

# visualize training log
logs_plt(logs, trainarg)
Performing fitting evaluation on synthetic data:
# get estimates
ntest = 100
posteriors = test(mlp, inputs, ntest)
est = mean(posteriors)
est_std = std(posteriors)
# get evaluation plot for each parameters in the model
evalplots_mean, evalplots_std, para_range = eval_plt(netarg, est, est_std, labels)
# plotting evaluation
titles = [L"f_{is}" L"f_{in}" L"R_{soma}" L"D_{\parallel}^{in}" L"D_{ec}"]
Plots.plot(
evalplots_mean["fracs1"],
evalplots_mean["fracs2"],
evalplots_mean["soma.size"],
evalplots_mean["neurite.dpara"],
evalplots_mean["extra.diff"];
layout=(2, 3),
size=(900, 400),
legend=:none,
margin=5mm,
xguidefontsize=8,
yguidefontsize=10,
titles=titles,
xlabel=[L"GT" L"GT" L"GT\ [{\mu}m]" L"GT\ [{\mu}m^2/ms]" L"GT\ [{\mu}m^2/ms]"],
ylabel=L"Estimates: Mean",
dpi = dpi,
)
savefig(joinpath(figdir, "Eval_sandi_5p_" * info * "_mean.pdf"))
Plots.plot(
evalplots_std["fracs1"],
evalplots_std["fracs2"],
evalplots_std["soma.size"],
evalplots_std["neurite.dpara"],
evalplots_std["extra.diff"];
layout=(2, 3),
size=(900, 400),
legend=:none,
margin=5mm,
xguidefontsize=8,
yguidefontsize=10,
titles=titles,
xlabel=[L"GT" L"GT" L"GT\ [{\mu}m]" L"GT\ [{\mu}m^2/ms]" L"GT\ [{\mu}m^2/ms]"],
ylabel=L"Std/Prior\ Range",
dpi = dpi,
)
savefig(joinpath(figdir, "Eval_sandi_5p_" * info * "_std.pdf"))Apply trained network to real datasets:
studydir = "/Users/tgong/Work/Database/Connectome1"
subjs = (
"sub_001", "sub_001_rescan", "sub_002", "sub_002_rescan", "sub_003", "sub_003_rescan"
)
modelname = "sandi.5p.uniform."
for subj in subjs
datadir = joinpath(studydir, subj, "dwi_real")
dmri = mri_read(joinpath(datadir, "d1_diravg_norm.nii.gz"))
mask = mri_read(joinpath(datadir, subj*"_dwi_real_brainmask.nii.gz"))
savedir = joinpath(datadir, "SANDI")
mkpath(savedir)
nn_estimate(dmri, mask, mlp, netarg, ntest, savedir, modelname)
endResults
Fitting evaluation. While other model parameters can be accurately estimated, the $D_∥^{in}$ cannot be estimated with the evaluated protocol, and the estimates tend to be biased towards the mean values of the prior distribution.
